94004 Kirsch Ceiling Mount Baton Ripplefold Assembled Sets
Item# 776010


Mouseover to Zoom - Click to View Large Image

Alternate View of Product
SKU: 94004
Extruded of 0.050" 6063T5 aluminum alloy etched and anodized.

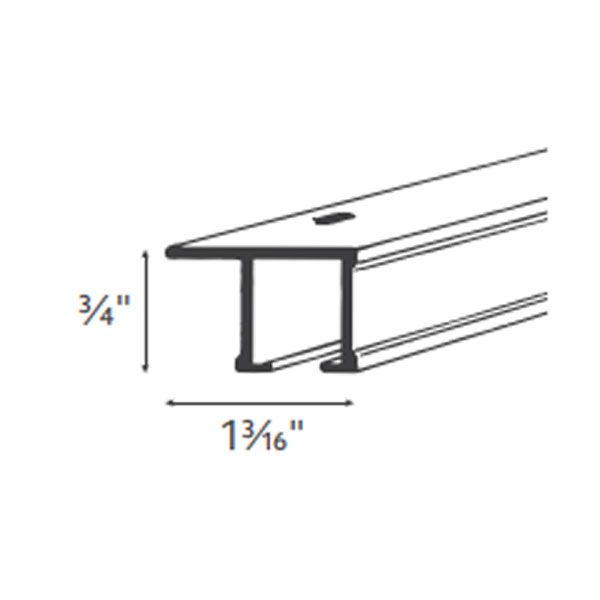

Low-Profile Ceiling Mount 3/4"

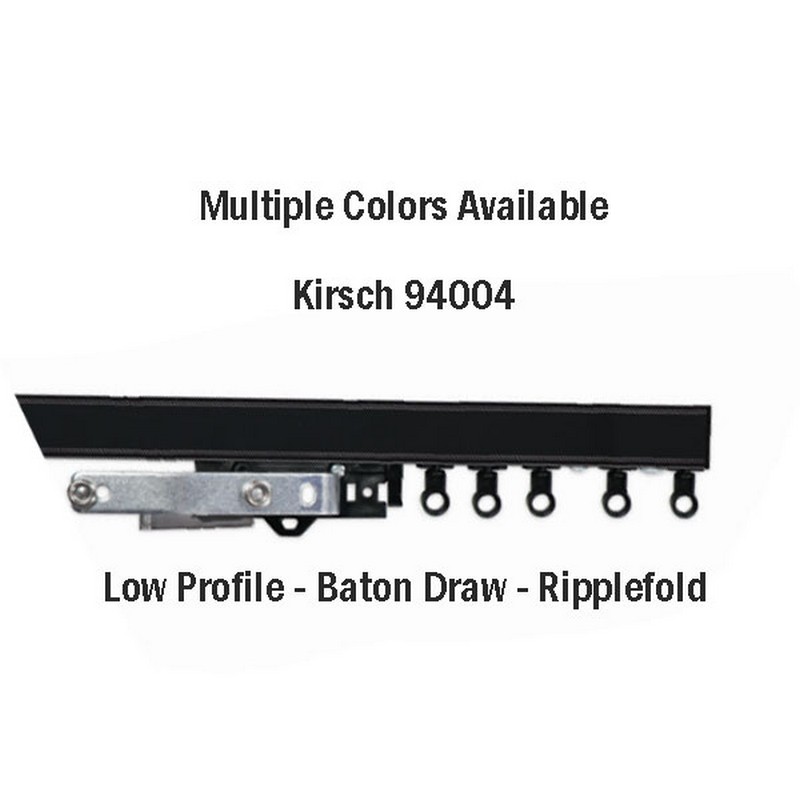

Kirsch Architrac Series 94004 Ripplefold Carriers for Draperies with Snap-Tape
Baton or Hand Draw

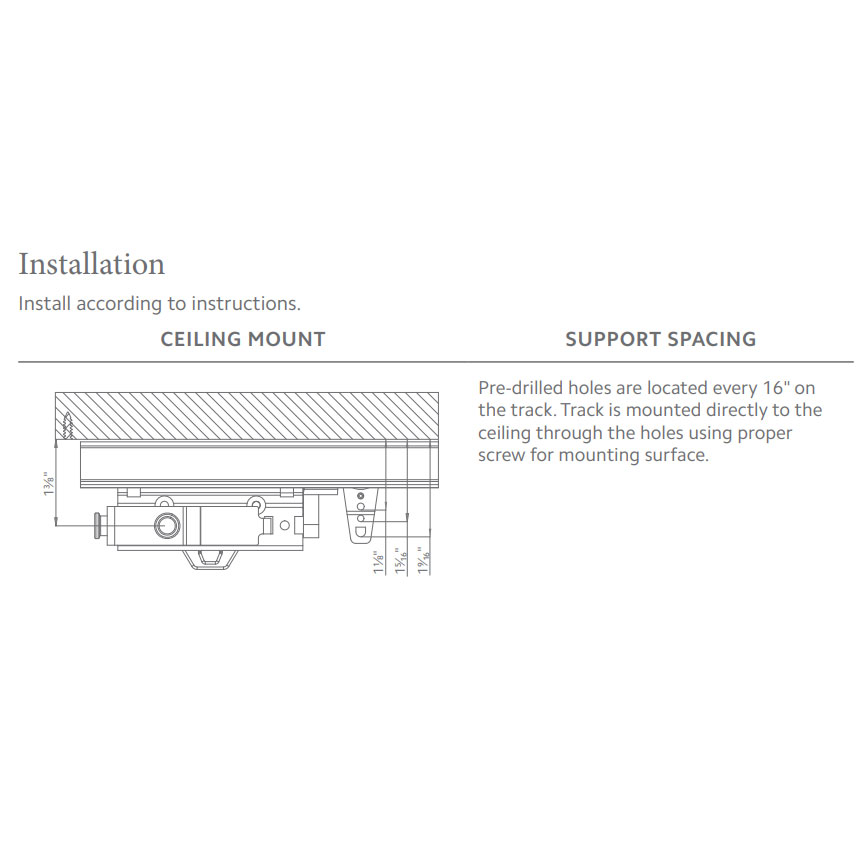

Ceiling Mount Track pre-drilled 16" on center for direct ceiling mount.
Right, Left or Center Draw

Assembled sets include all necessary parts. Baton draw includes 36" fiberglass baton. Heavy duty ball bearing pulleys and heavy duty carriers.

When choosing ripplefold curtains, you need to choose either a butt master carrier or overlap master carrier.
Center Draw: Butt master will provide a continuous fold look but will allow some light to filter in between the center crack. An overlap carrier will cover the light gap but create a flat center.
Left or Right Draw: A butt master carrier will have a continuous wave look with the curtain panel wrapping completely around the end. An overlap master carrier will create a flat look on the end.

Overlap Carrier

Butt Master Carrier
Butt Master Carrier



Complete assembled set made to measure to 1/8 inch. Please enter exact length measurement needed in inches in the custom size box.
Extra long curtain rod traverse set up to 32 feet in center draw.
Fabric Weight capacity is 4lbs per linear foot.

Making your own draperies or converting to ripplefold? Don't forget the snap-tape.

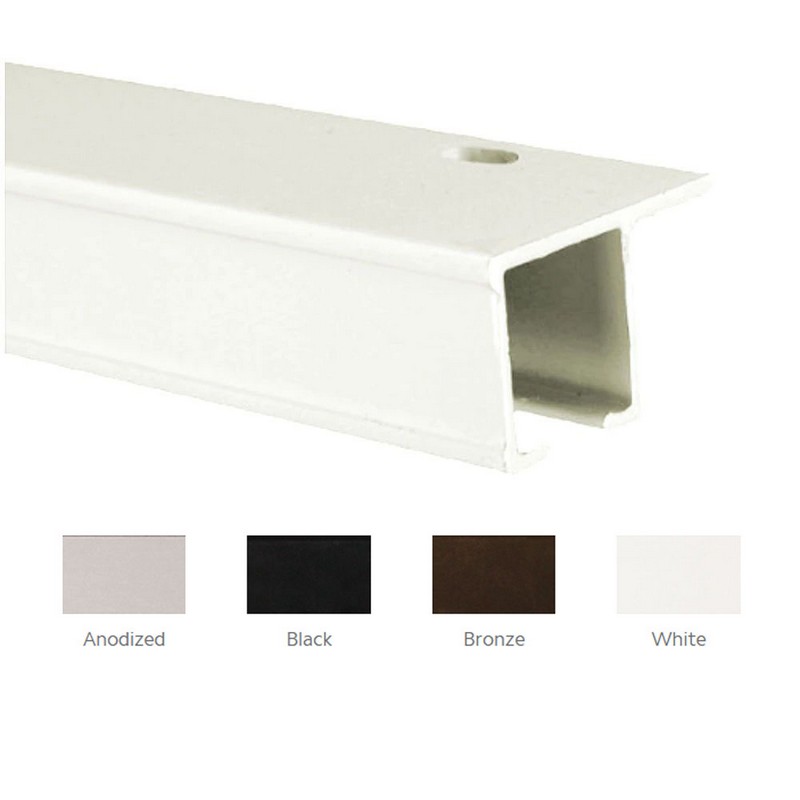

Color: Choose a color
Pick a color to set it for every piece below.
WhiteWhiteAnodizedAnodizedBronzeBronzeBlackBlack
View complete color chart


Please note: this item is not eligible for return.
Build Your Set
View Larger Image 94004 Ceiling Mount Baton Ripplefold Assembled Set 2 FeetItem #776023
$163.80 set





Custom Size:
Qty:  Set
View Larger Image 94004 Ceiling Mount Baton Ripplefold Assembled Set 4 FeetItem #776024
$180.00 set





Custom Size:
Qty:  Set
View Larger Image 94004 Ceiling Mount Baton Ripplefold Assembled Set 6 FeetItem #776025
$196.20 set





Custom Size:
Qty:  Set
View Larger Image 94004 Ceiling Mount Baton Ripplefold Assembled Set 8 FeetItem #776026
$225.00 set





Custom Size:
Qty:  Set
View Larger Image 94004 Ceiling Mount Baton Ripplefold Assembled Set 10 FeetItem #776027
$244.80 set





Custom Size:
Qty:  Set
View Larger Image 94004 Ceiling Mount Baton Ripplefold Assembled Set 12 FeetItem #776028
$262.80 set





Custom Size:
Qty:  Set
View Larger Image 94004 Ceiling Mount Baton Ripplefold Assembled Set 16 FeetItem #776030
$311.40 set





Custom Size:
Qty:  Set
View Larger Image 94004 Ceiling Mount Baton Ripplefold Assembled Set 14 FeetItem #776029
$291.60 set





Custom Size:
Qty:  Set
View Larger Image 94004 Ceiling Mount Baton Ripplefold Assembled Set 20 FeetItem #776031 Center Draw Only
$358.20 set




Custom Size:
Qty:  Set
View Larger Image 94004 Ceiling Mount Baton Ripplefold Assembled Set 24 FeetItem #776032 Center Draw Only
$408.60 set




Custom Size:
Qty:  Set
View Larger Image 94004 Ceiling Mount Baton Ripplefold Assembled Set 28 FeetItem #776033 Center Draw Only
$448.20 set




Custom Size:
Qty:  Set
View Larger Image 94004 Ceiling Mount Baton Ripplefold Assembled Set 32 FeetItem #776034 Center Draw Only
$496.80 set




Custom Size:
Qty:  Set
View Larger Image Kirsch Ripplefold Snap Tape WhiteItem #880540 1" Wide Architrac Ripplefold Snap Tape - Nickel plated brass snaps that do not rust. Works with all fullness options: 80%, 100% and 120%. Washable or Dry Clean. Check snap with snap carrier to ensure a snug fit before sewing snap tape to drapery panel. Snap spacing is 4 1/4"
$5.80 yard
Qty:  Yard
