Formatrac 105 Feet
Item# 643514

  InPro Corp 105 Feet of Formatrac White
Mouseover to Zoom - Click to View Large Image

Alternate View of Product
Color: White
Ships by Motor Freight

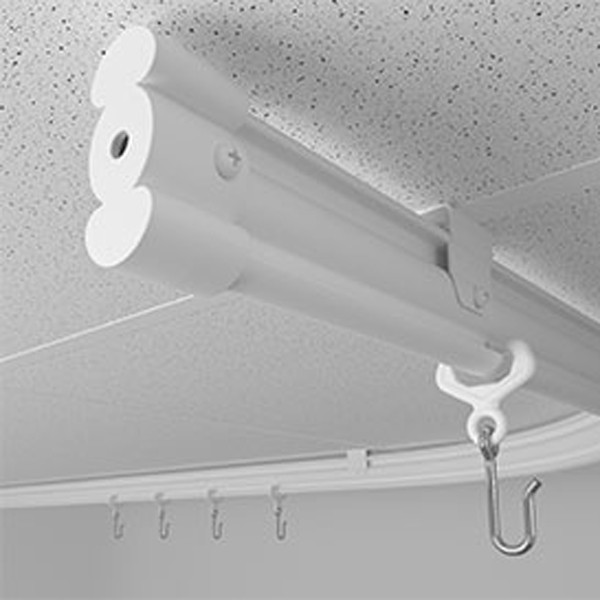

Flexible Curtain Track is easily bent, cut and installed. This superior bendable track can accommodate virtually any design. The nylon carriers glide smoothly and quietly. No need to remove the end caps to add or replace carriers as the carriers snap onto the track. 99% recycled aluminum core with a Class A Fire Rating. Perfect for healthcare, commercial and residential applications. Privacy curtains and shower curtains. This large roll can easily be carried to the job site and cut to fit on- site.

Spring clips are available for direct ceiling mount or with t-bar clips for both 15/16" and 9/16" grids. The swivel end cap allows for angled wall mounting for those unusual spaces. The radius clip provides extra support for 90° bends.
For straight applications, use a ceiling mount spring clip per 2 feet.
For curved applications, use a ceiling mount spring clip per every 1.5 feet.

Installation Instructions

Specifications

Formatrac Brochure

Maintenance Instructions


Build Your Set
View Larger Image Formatrac 105 FeetItem #643514 $904.00 roll
Qty:  Roll
View Larger Image Formatrac Nylon Carrier with HookItem #643515 Nylon carrier can handle 50lbs per foot. Super quiet. Slide height: 1 1/8" Carrier height: 2 3/8"
$1.24 each
Qty:  Each
View Larger Image Formatrac Spring ClipItem #643520 Ceiling bracket with matching set screw. Recommended spacing 24" on center for straight track. 18" spacing on center for track with bends.
$5.40 each
Qty:  Each
View Larger Image Formatrac Spring Clip with Grid ClipItem #643522 Clips track to 15/16" t-bar grid ceilings. Recommended spacing 24" on center for straight track. 18" spacing on center for track with bends.
$7.38 each
Qty:  Each
View Larger Image Formatrac Spring Clip with Grid Clip 916Item #643521 Clips track to 9/16" t-bar grid ceilings. Recommended spacing 24" on center for straight track. 18" spacing on center for track with bends.
$8.93 each
Qty:  Each
View Larger Image Formatrac Radius Clip Item #643519 Added support for 90° angle with 12" radius. Clip is 19" long.
$18.90 each
Qty:  Each
View Larger Image Formatrac End CapItem #643517
$2.20 each
Qty:  Each
View Larger Image Formatrac Fixed End CapItem #643518 End cap with fixed carrier hook ensures that the curtain remains secured to the end of track.
$2.39 each
Qty:  Each
View Larger Image Formatrac Swivel End CapItem #643516 For angled wall mounting. 180° pivot.
$9.29 each
Qty:  Each
