Windsor Pleated Draperies and Curtain Panels

Windsor Pleated Draperies
Windsor draperies add a sophisticated touch to your windows. These beautifully crafted curtains are custom made to your exact specifications.
  • Windsor Pleated Panels are available unlined, lined or self-lined.
  • Recommended 2X Fullness
  • 4" double-turned heading with Heavy Duty Crinoline - a heavy, stiff fabric used to make pleats hold their shape.
  • 4" double-turned bottom hem, blindstitched
  • 1 1/2" double-turned side hems, blindstitched
  • Clear or smoke monofilament thread
  • Overlap for a pair of center split draperies is 5" - 2.5" inches per panel.
  • Drapery pins included and set to your specifications
  • Laminated 1 oz. weights used in the hem
  • Finished length includes all options. Finished length is the actual flat length of the drapery from the top to the bottom, including headings and other options.
  • Pattern matched at seams from bottom up
  • Shipping costs will be included in quote.
Click here to go directly to cost and yardage estimates.

How to Measure Your Window(s)
Contact Information


We Respect Your E-mail Privacy! View our Privacy Policy.

Curtain/Drapery Panel Details

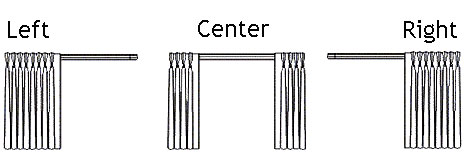

Drapery Overlap
5" Standard - 2 1/2" Each Panel for Center

Drapery Return
Return can be 0.

Drapery Fullness
The fuller the drapery, the smaller the spaces between each pleat. Defaults to recommended fullness for pleat style chosen.

Drapery Pin Settings

Defaults to recommended setting based on rod choice.


What you need to know about ordering Curtain Panels
First measure your window.
Rod Face Width
•Rod should extend 4" on each side of the window to acheive privacy.
•For panels to clear the window, calculate stackback of the drapery by adding 40% of your window size to determine your new rod face width. For example, if your window is 50" wide: 50 x 40% = 20 so 50 + 20 = 70" wide. Of course, thinner fabrics need less room while thicker/heavier fabrics may need a little more.
Returns
•The projection from the wall to the front of the rod.
Finished Length
Standard or Conventional Curtain Rods - measure from the top of the rod.
Decorative Rods - measure from the bottom of the rod.


•Standard lining choices are B-line, Challis, and Crest and are included in lined price. Click here for Drapery Lining FAQ >
Interlining, FR and Blackout linings are available for an up charge.

Kasmir Drapery Linings

•Fullness: More fullness equates to more fabric used. To show more of the pattern, use less fullness. Use more fullness for a lighter weight fabric and less for heavier fabrics. For sheers, lace and lightweight fabrics, 3x fullness is recommend. Medium weight 2.5x and 2x for heavy and bulky fabrics. Fullness may also be affected by pleat style.

•Available options include applied trims, horizontal and vertical bandings, pillowcased hems, ruffles, attached buttons and many more.



Estimated Fabric Yards Needed for Curtain Panels for solid fabrics and recommended 2X fullness. Double the amount of yardage listed for Self-Lined panels. Lined panels include standard lining at no additonal charge.

Finished Width 0-19" 20-45" 46-72" 73-98" 99-125" 126-151" 152-178" 179-204" 205-231" 232-257"
Labor Widths 1 2 3 4 5 6 7 8 9 10
Length to 36" 1.75 yds 3.5 yds 5.25 yds 7 yds 8.75 yds 10.5 yds 12.25 yds 14 yds 15.75 yds 17.5 yds
Length to 37-48" 2 yds 4 yds 6 yds 8 yds 10 yds 12 yds 14 yds 16 yds 18 yds 20 yds
Length to 49-60" 2.25 yds 4.5 yds 6.75 yds 9 yds 11.25 yds 13.5 yds 15.75 yds 18 yds 20.25 yds 22.5 yds
Length to 61-72" 2.75 yds 5.5 yds 8.25 yds 11 yds 13.75 yds 16.5 yds 19.25 yds 22 yds 24.75 yds 27.5 yds
Length to 73-84" 3 yds 6 yds 9 yds 12 yds 15 yds 18 yds 21 yds 24 yds 27 yds 30 yds
Length to 85-96" 3.25 yds 6.5 yds 9.75 yds 13 yds 16.25 yds 19.5 yds 22.75 yds 26 yds 29.25 yds 32.5 yds
Length to 97-108" 3.75 yds 7.5 yds 11.25 yds 15 yds 18.75 yds 22.5 yds 26.25 yds 30 yds 33.75 yds 37.5 yds
Length to 109-120" 4 yds 8 yds 12 yds 16 yds 20 yds 24 yds 28 yds 32 yds 36 yds 40 yds
Length to 121-132" 4.25 yds 8.5 yds 12.75 yds 17 yds 21.25 yds 25.5 yds 29.75 yds 34 yds 38.25 yds 42.5 yds
Length to 133-144" 4.75 yds 9.5 yds 14.25 yds 19 yds 23.75 yds 28.5 yds 33.25 yds 38 yds 42.75 yds 47.5 yds
Length to 145-156" 5.25 yds 10.5 yds 15.75 yds 21 yds 26.25 yds 31.5 yds 36.75 yds 42 yds 47.25 yds 52.5 yds
Length to 157-180" 6 yds 12 yds 18 yds 24 yds 30 yds 36 yds 42 yds 48 yds 54 yds 60 yds
Length to 181-200" 6.75 yds 13.5 yds 20.25 yds 27 yds 33.75 yds 40.5 yds 47.25 yds 54 yds 60.75 yds 67.5 yds
Fabric repeats may require additional yardage.
